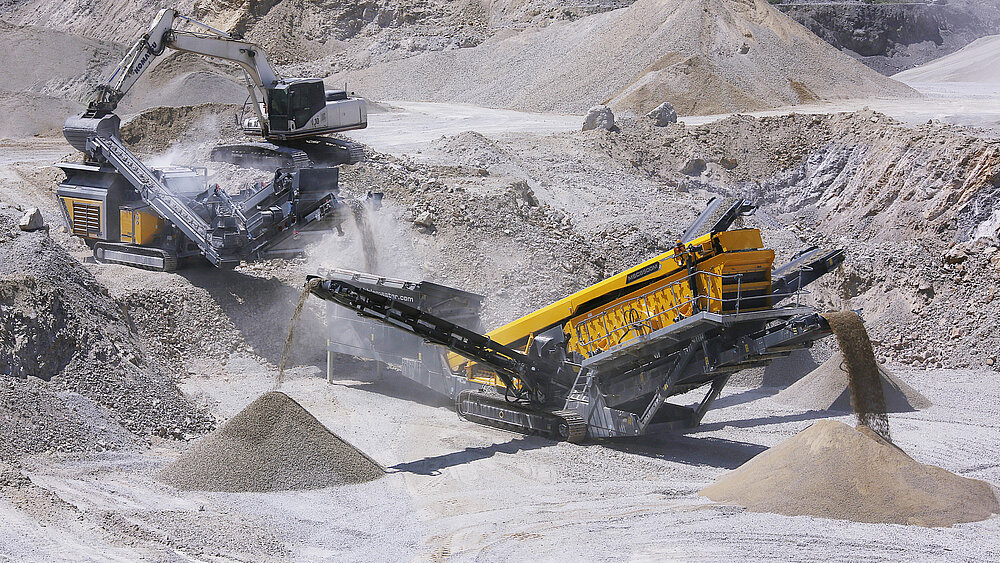

Crushing aggregates for concrete and asphalt production with a RM 100GO! and a RM MSC8500M incline screen

RM MSC8500M

Inclined Screen

Capacity 400 tph 440 TPH
Screen-box 5,485 x 1,525 mm 5 x 18 ft
Screen-decks 2 or 3 2 or 3

Inclined Screen for Aggregate Producers

The RUBBLE MASTER RM MSC8500M Inclined Screen is a mid-sized aggregate screen available in a 2 or 3 deck configuration. It is ideal for high production capacities in soil, coal, aggregates, millings, sand & gravel applications. User benefits include a quick set-up time, drop down tail conveyor and mesh-screen access system to aid screen media changes.



Large Feed Hopper

Easy to feed with wide loader buckets.

Radio remote control

Tipping Grid

Radio remote controlled tipping grid.

Simple & fast settings

Easy to Change Screens

Lower screen-box and conveyors for ease of access.

Dust suppression system

Optional Rinser Kit

RUBBLE MASTER offers washing options that can be used with the RM MSC8500M incline screens. The rinser kit includes plumbing, spray bars and catch box to allow operators to use the machine in wet screening applications.

Move Anytime, Anywhere

The RM MSC8500M provides excellent mobility on the road and on the job. Hydraulic folding conveyor allows for easy and quick setup. Over top folding side conveyors ensure conveyor belt longevity and ease of setup.

Easy to move

Easy to Mobilize

Hydraulic folding conveyors. No need to fold catwalks.

Ease of Use

Easy to Set Up

Simple and intuitive folding mechanism for discharge conveyors.

15 min

Fast setup on the job



Applications

Crushing & screening limestone Crushing limestone with a RM 100GO! impact crusher and screening 4 finished products with a RM MSC8500M incline screen.
Crushing & screening basalt A RM 100GO! impact crusher run with a RM MSC8500M incline screen in a closed loop configuration to produce 3 asphalt stone products.
Screening dirt and sand The RM MSC8500M incline screen segregates stones and debris and produces a homogeneous sand product.
Producing Screened Asphalt Millings The RUBBLE MASTER RM MSC8500M triple-deck screening plant provides the screen surface needed to achieve high outputs with small, finished fractions.
Screening sand and gravel The RM MSC10500M mobile incline screen provides you a high capacity without sacrificing mobility.

3 Deck RM MSC8500M Specs

Capacity 400 tph 440 TPH
Screen-box 5,485 x 1,525 mm 5 x 18 ft
Screen-decks 3 3
Screen angle 20° - 30° 20° - 30°
Feed unit 9.2 m³ 12 yd³
Engine 97 kW 130 HP
Drive Diesel-hydraulic Diesel-hydraulic
Transport dimension 17,610 x 3,000 x 3,550 mm 57'10" x 9'10" x 11'7"
Weight 34,500 kg 76,100 lbs
RM MSC8500M-3D Incline Screen

2 Deck RM MSC8500M Specs

Capacity 400 tph 440 TPH
Screen-box 5,485 x 1,525 mm 5 x 18 ft
Screen-decks 2 2
Screen angle 20 - 30° 20 - 30°
Feed unit 9.2 m³ 12 yd³
Engine 97 kW 130 HP
Drive Diesel-hydraulic Diesel-hydraulic
Transport dimension 17,650 x 3,000 x 3,400 mm 57'11" x 9'10" x 11'2"
Weight 32,000 kg 70,560 lbs
RM MSC8500M-2D Incline Screen
Compare Models RM MSC-Series Incline Screens

Capacity
Screen-box
Screen-decks
RM MSC8500M-3D Incline Screen RM MSC8500M
Tracked Incline Screen
400 tph 440 TPH
5,485 x 1,525 mm 5 x 18 ft
2 or 3 2 or 3
learn more
RM MSC10500M-2D Incline Screen RM MSC10500M
Tracked Incline Screen
450 tph 500 TPH
6,700 x 1,525 mm 5 x 22 ft
2 or 3 2 or 3
learn more
Make more money

Purchase Your Crusher the Easy Way

RUBBLE MASTER Finance provides leasing and financing solutions to keep your business productive, efficient, and competitive within the industry by offering a suite of financing products that can be customized to meet the most complex budgetary needs

Talk to an Expert

Since 1991, RUBBLE MASTER has brought numerous innovations to the market. We’re crushing & screening experts and work closely with contractors and aggregate producers world-wide.
