Maximum Versatility: Demolition, Millings and Gravel Screen

The RM HS7500M is a tough, robust and dependable scalping screen designed to cope with heavy duty screening applications. It features all the options to process extremely difficult and abrasive materials. The highly aggressive 5' x 16' double deck screen-box provides an exceptional output across a wide range of applications, such as millings, sand & gravel, topsoil and C&D waste.

3-Way Split

Produce a fine-size, a mid-size and an oversize product.

One machine, multiple applications.

Ideal for processing sand & gravel, shot rock, soils, mulch, C&D waste, millings and more.

Heavy Duty Design

Strongest built machine on the market.

Optional 2 Way Split

Produce only 2 products instead of 3.



Easy to Change Setup

Change screen media easily.

Optional Apron Feeder

Heavy duty feeder option for screening blast rock or heavy duty demolition materials.

Move Anywhere, Anytime

The RM HS7500M provides excellent mobility on the road and on the job. Hydraulic folding conveyor allows for easy and quick setup. Over top folding side conveyors ensure conveyor belt longevity and ease of setup.

Easy setup

One operator can set up the screen without the need of any special hand tools.

Fast setup

15 minutes from trailer to screening with hydraulic folding conveyors.

Easy to move

Use the same trailers you use to move a mid-size excavator

Video Gallery

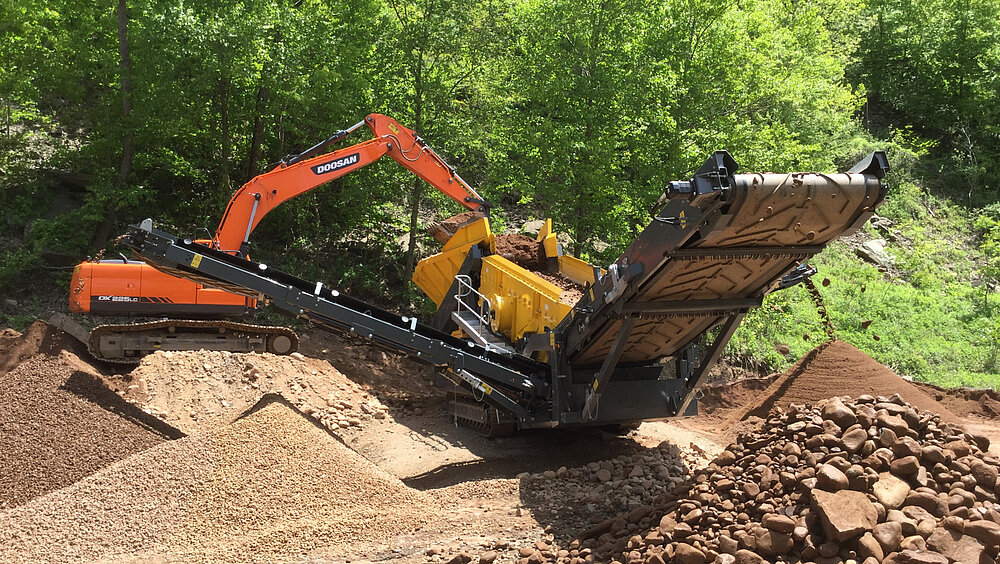

Gravel Screener Producing 3 Products Processing sand & gravel into 1/4"-, 1/4" - 1" clear stone and oversize.
Scalping C&D waste The RM HS7500M is ideal for heavy duty screening applications such as C&D waste with contaminants.
RM HS7500M scalping C&D waste Segregation of fines and finished product before the crushing process. An RM 100GO! was used to turn the oversize product into a 1"- material.

RM HS7500M Specs

Capacity 450 tph 450 TPH
Screen-box 4,880 x 1,525 mm 5 x 16 ft
Screen-decks 2 2
Screen angle 15°-20° 15°-20°
Feed unit 8.7 m³ 11.7 yd³
Engine 97 kW 130 HP
Drive Diesel-hydraulic Diesel-hydraulic
Stockpile height tail conveyor 2,980 - 3,750 mm 9´9"- 12´4"
Stockpile height mids conveyor 3,780 mm 12´5"
Stockpile height fines conveyor 4,080 mm 13´5"
Transport dimension 15,005 x 2,920 x 3,430 mm 49´3" x 9´7" x 11´3"
Weight 33,000 kg 72,752 lbs
RM HS7500M
Compare Models RM HS-Series Scalping Screens

Capacity
Screen-box
Screen-decks
RM HS3500M RM HS3500M
Mobile Scalping Screen
200 tph 220 TPH
2,743 x 1,220 mm 4 x 9 ft
2 2
learn more
RM HS5000M RM HS5000M
Mobile Scalping Screen
300 tph 330 TPH
3,660 x 1,420 mm 5 x 12 ft
2 2
learn more
RM HS7500M RM HS7500M
Mobile Scalping Screen
450 tph 450 TPH
4,880 x 1,525 mm 5 x 16 ft
2 2
learn more
RM HS11000M RM HS11000M
Mobile Scalping Screen
600 tph 600 TPH
18,300 x 6,100 mm 6 x 20 ft
2 2
learn more
