Recycling & Rock Crushing

Mobile impact crushers are used to recycle concrete and asphalt and process natural rock. They are easy to move on and between job-sites, which allows operators to crush on smaller job-sites. Best of all they often come with an on-board screen attachment to produce spec products eliminating the need for additional screening equipment on-site.

Maximum versatility

Do More Jobs with One Crusher

Mobile impact crushers can process a variety of input materials from reinforced concrete and asphalt as well as soft and hard rock.



Quality product

Meet Your Spec

Machine configuration can be adjusted to produce a multitude of finished products. The aggregate quality is far superior than with other type crushers because of its gradation and cuboid material shape.



Easy to move

Easy to Move

Ideal for on-site crushing to eliminate trucking and disposal costs or for custom crushing.



Tracked Impact Crushers
that Make You More Money

RUBBLE MASTER builds the most versatile, job-friendly suite of mobile impact crushers available. We unite performance and mobility so that you can tackle more jobs and grow your business faster.

Are you ready for the production without the hassle?

Performance

High Performance

Mobile impact crushers featuring a high throughput capacity without sacrificing mobility.

Ease of Use

Easy to Use

Making money has never been this easy. We build machines that are simple to operate and easy to maintain so that even novice operators dominate the jobsite from day one.



Safe to use

Safe to Use

Safety is our top concern so that you can trust your guys around the machine.



Save up to 30% in fuel with our
diesel-electric direct drive

RUBBLE MASTER mobile impact crushers use a proven and powerful diesel-electric drivetrain. Contrary to many traditional crusher manufacturers RUBBLE MASTER has been using this highly efficient drivetrain since our beginning in 1991 because of its many benefits over the lifetime of a machine.

30% Less

Burns Less Fuel

compared to same size diesel-hydraulic plants

Extreme temperatures

Works Well in Extreme Temperatures

No overheating in summer and no heating-up in winter.

Low Maintenance Costs

Electric systems are easier to troubleshoot and cheaper to maintain.

To be clear our mobile impact crushers are compact and light but far from slow!

RUBBLE MASTER is the global market leader for mobile compact crushers. Our low-mount engine design reduces steel structure to a minimum without jeopardizing performance. Best of all: it makes maintenance and moving the machine easy.

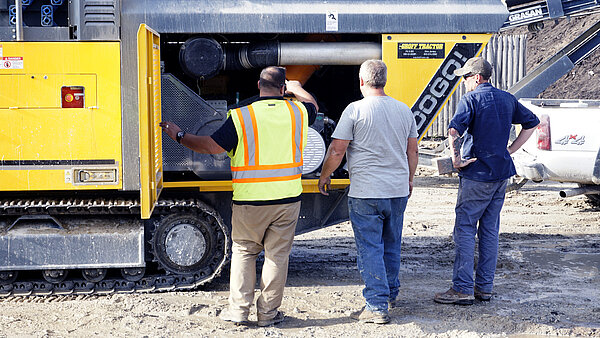

Ground based service

Ground Based Service

We keep your feet on the gorund so that you don't need to climb the machine with power tools or heavy wear parts.

Fits on most trailers

Easy to Mobilize

Use your existing trailer to move the mobile impact crusher. Easy permits. From trailer to crushing within 15 minutes.

Low feed height

Low Feed Height

Easy to feed with an excavator or loader. Easy to pair with an adjacent jaw crusher or screening plant.

mobile impact crusher comparison: high- vs low-mount engine

Traditional high-mount engineX

Engine compartment sits above the main conveyor which requires operators to climb the machine for maintenance. It also makes the discharge tunnel longer risking easier material blockages.

Low-mount engine (compact crusher)X

The engine is placed underneath the hopper, which is a void area with many traditional mobile impact crushers.

  • Less steel = lighter machine
  • Shorter exit tunnel = less blockages
  • Easy maintenance = faster maintenance
  • Faster maintenance = more crushing
RUBBLE MASTER mobile crushers engine compartment
Compare Impact Crusher Models Ranging from 90 to 385 TPH

Capacity
Inlet opening
Screen-box
Engine
Transport dimension
Weight
RM 120X
Impact Crusher
350 tph 385 TPH
1,160 x 820 mm 46" x 32"
1,480 x 3,708 mm 5 x 12 ft
298 kW 400 HP
16,180 x 2,990 x 3,600 mm 52‘10” x 9‘11” x 10‘6“
44,000 kg 95,000 lbs
learn more
RM 100GO! Compact Crusher RM 100GO!
Impact Crusher
250 tph 275 TPH
950 x 700 mm 37" x 28"
1,300 x 3,000 mm 4 x 10 ft
242 kW 325 HP
14,700 x 2,860 x 3,155 mm 48'3" x 9'5" x 10'5"
33,600 kg 74,500 lbs
learn more
RM 90GO! Compact Crusher RM 90GO!
Impact Crusher
200 tph 220 TPH
860 x 650 mm 34" x 25"
1,100 x 2,300 mm 4 x 8 ft
194 kW 260 HP
13,470 x 2,550 x 3,050 mm 44'2" x 8'5" x 10'
28,400 kg 62,500 lbs
learn more
RM 70GO! Compact Crusher RM 70GO! 2.0
Impact Crusher
150 tph 165 TPH
760 x 600 mm 30" x 23"
22 x 444 mm 3.5 x 7 ft
115 kW 155 HP
13,300 x 2,360 x 3,100 43'8" x 7'9" x 10'2"
24,200 kg 53,400 lbs
learn more

Operating a RUBBLE MASTER
is just…awesome.


Don’t just take our word for it.

mobile impact crusher owner in California

There is no safety that you are risking. My guys have thanked my time and time again for purchasing this machine over another one because it is so much easier on them.

Byrce Swaim
BTS Equipment

mobile impact crusher owner in Florida

This machine puts out a lot of material, but most importantly, it is easy enough so my guys can troubleshoot many issues themselves.

Danny Salomon
Broadway Recycling

mobile impact crusher owner in Illinois

What makes a RUBBLE MASTER a RUBBLE MASTER is its compact dimension and the high troughput capacities that we achieve paired with an easy radio remote controlled operation.

Dave Schielein
Ironhustler Excavating
