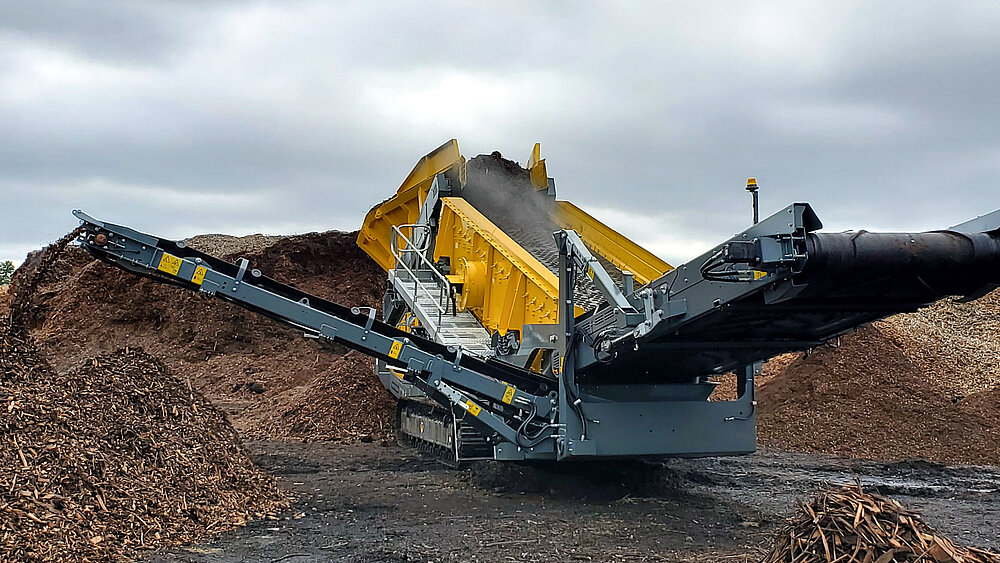

Heavy-Duty Portable Screening Plant

The RM HS11000M is a tough, robust and dependable portable screening plant designed to cope with heavy-duty scalping applications. The highly aggressive 6' x 20' double deck screen-box provides an exceptional output across a wide range of applications, such as shot rock, millings, soils, mulch, and C&D waste.

3-Way Split

Produce a fine-size, a mid-size and an oversize product.

One machine, multiple applications

Ideal for processing sand & gravel, shot rock, soils, mulch, C&D waste, millings and more.

Heavy Duty Design

Strongest built machine on the market

Optional 2 Way Split

Produce only 2 products instead of 3.

Magnetic separator

Optional Magnet

Segregate rebar from your oversize material.

Optional Apron Feeder

Heavy duty feeder option for screening blast rock or heavy duty demolition materials.

RM HS11000M Specs

Capacity 600 tph 600 TPH
Screen-box 18,300 x 6,100 mm 6 x 20 ft
Screen-decks 2 2
Screen angle 13° - 17° 13° - 17°
Feed unit 8.7 m³ 11.3 yd³
Engine 168 kW 225 HP
Drive Diesel-hydraulic Diesel-hydraulic
Stockpile height fines conveyor 3,700 mm 12’ 1”
Stockpile height mids conveyor 3,100 mm 10’ 2”
Stockpile height tail conveyor 2,700 - 3,900 mm 8’10” - 12’10”
Transport dimension 16,345 x 3,000 x 3,550 mm 53’ 8” x 9’ 10” x 11’ 8”
Weight 39,000 kg 86,000 lbs
RM HS11000M
Compare Models RM HS-Series Portable Screening Plants

Capacity
Screen-box
Screen-decks
RM HS3500M RM HS3500M
Mobile Scalping Screen
200 tph 220 TPH
2,743 x 1,220 mm 4 x 9 ft
2 2
learn more
RM HS5000M RM HS5000M
Mobile Scalping Screen
300 tph 330 TPH
3,660 x 1,420 mm 5 x 12 ft
2 2
learn more
RM HS7500M RM HS7500M
Mobile Scalping Screen
450 tph 450 TPH
4,880 x 1,525 mm 5 x 16 ft
2 2
learn more
RM HS11000M RM HS11000M
Mobile Scalping Screen
600 tph 600 TPH
18,300 x 6,100 mm 6 x 20 ft
2 2
learn more
