Mobile Impact Crusher - Jaw & Cone Crusher Alternative

RM V550GO!

Secondary/Tertiary Impact Crusher for Hard Rock

Capacity up to 200 tph up to 200 TPH
Inlet opening 950 X 480 mm 3 x 1.5 ft
Weight 33,000 kg 75,000 lbs

The Ultimate Jaw & Cone Alternative

Your material is too big for a cone crusher but too small for a jaw crusher. The RM V550GO! delivers exceptional performance when you want to process small materials into even smaller ones. The unique VORTEX impact crushing chamber surpasses other impactors in wear and reduction ratio, making this machine ideal for processing crushed hard rock, an existing aggregate stockpile, and river rock.

High reduction ratio

Exceptional Reduction Ratio with Up to 50% Sand

Crushing from small to smaller in one step. The days of costly jaw and cone crusher trains are over. Ideal for producing sand and grit.

Quality product

High-Quality Cuboid Aggregates

Far better shaping than with cone crushers.

Heavy-duty design

Strong Performance with Hard and Abrasive Rock

Where other impact crushers fail, the Vortex impact crusher has proven its outstanding crusher design.

Fines
Natural rock
Natural rock
Natural rock
Grit
Natural rock
Natural rock
Natural rock
Cubicity
Natural rock
Natural rock
Natural rock

Lowest Operating Costs

The RM V550GO! can replace a traditional jaw cone, and screening plant setup. Like all RUBBLE MASTER impactors it features all the benefits that make it easy and safe to operate.

One-man operation

One-Man Operation

Your loader operator controls the crusher conveniently from his cab.

Single float

3 Machines in 1

Burning half the fuel and maintenance over a traditional setup.

30% Less

Fuel-Efficient Diesel-Electric Drive Saves Up to 30% on Fuel

compared to traditional diesel-hydraulic drives

Designed to be Fed with Wheel Loaders

The RM V550GO! is ideal for processing small amounts of materials or rehandling your stockpiles without the need to setup a costly crushing train including jaw, cone and screening plant.

Applications

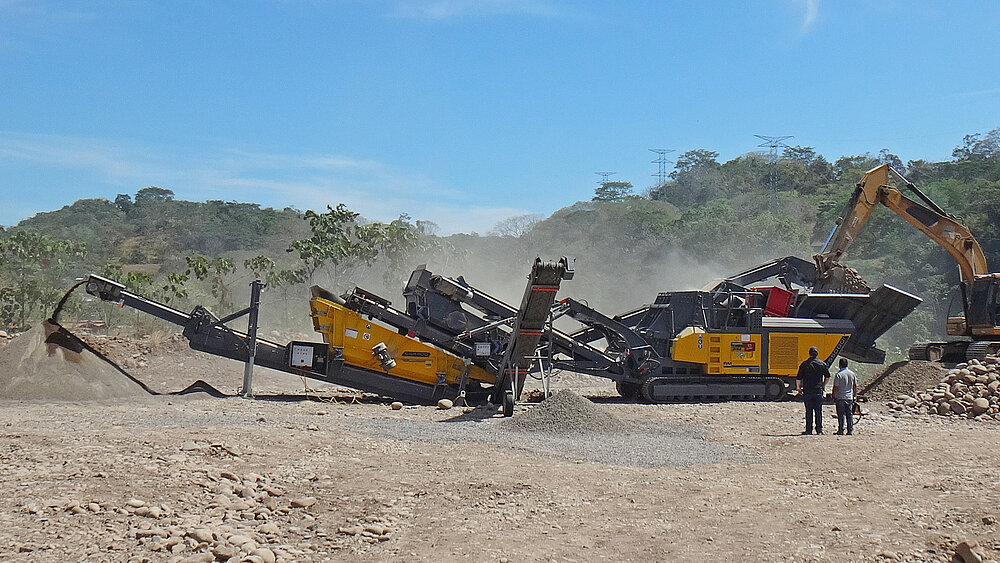

Processing river gravel without a primary jaw The RM V550GO! operates in conjunction with a RM CS4800 screening plant producing3 fractions.
Processing natural stone from 50-100 mm to 0-32 mm The RM V550GO! produces the material in a single pass without the need of a primary crusher or mobile finishing screen.
Replacing a 2nd and 3rd crushing stage Delivering precise cuboid material and a high proportion of sand. This RM V550GO! turns 250mm basalt rock into a high percentage of 0-8 and 8-15 mm products.

RM V550GO! Specs

Capacity up to 200 tph up to 200 TPH
Inlet opening 950 X 480 mm 3 x 1.5 ft
Crusher unit Vortex Crusher - 4-bar Rotor Vortex Crusher - 4-bar Rotor
Feed unit 5.5 m³ 7.1 yd³
Engine 286 kW 380 HP
Drive diesel-electric direct drive diesel-electric direct drive
Transport dimension 11,500 x 2,500 x 3,170 mm 37'9" x 8'3" x 10'5"
Weight 33,000 kg 75,000 lbs
RM V550GO! Hard Rock Crusher
We are sorry but there is a technical issue. Please send an e-mail to [email protected]

Operating a RUBBLE MASTER
is just…awesome.


Don’t just take our word for it.

Daniel Gisler - Holcim Switzerland

„The gradation is superb! We achieve a great sieve quality at a high production rate."

Daniel Gisler
Holcim, Switzerland
