RM MSC5700M
Compact Screening Plant
Compact, But Powerful
The RM MSC5700M incline screen is a popular model among small to medium size contractors who don't seek a high capacity but a high quality end product. It is capable of processing sand & gravel, soils, aggregates and more.
High Performance
Impressive throughput for its size
Easy to Use
Intuitive operation
Compact Footprint
Easy to mobilize.
Media Gallery

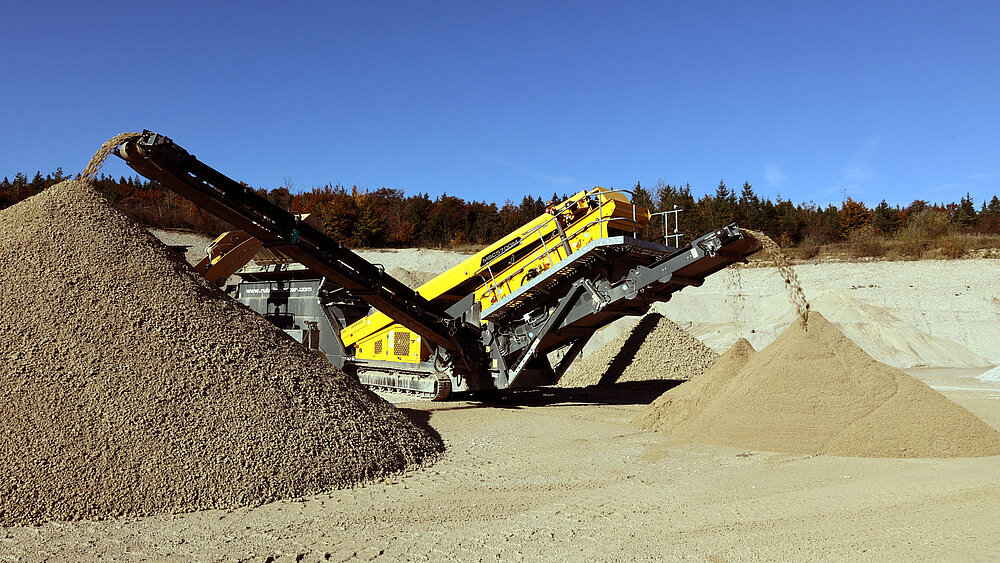

Screening gravel in Michigan
Producing road base and #57 stone.
Screening sand & gravel
Processing dredged sand & gravel.
RM MSC5700M Specs
| Capacity | up to 300 tph up to 330 TPH |
| Screen-box | 3,660 x 1,525 mm 5 x 12 ft |
| Screen-decks | 2 2 |
| Screen angle | 25-35° 25-35° |
| Feed unit | 9.2 m³ 12 yd³ |
| Engine | 97 kW 130 HP |
| Drive | Diesel-hydraulic Diesel-hydraulic |
| Transport dimension | 15,850 x 3,000 x 3,330 mm 52' x 9'10" x 10'11" |
| Weight (no options) | 26,800 kg 60,000 lbs |
