Compact Screens

The RM CS-Series screen attachments are the most economical 3-way split crusher screener setup.

Your Most Cost-Effective Quarry Operation

When Other Screening Solutions are Too Much, the
Compact Screen Attachment is Just Right

RUBBLE MASTER Compact Screens are the most economical 3-way-split screening plant that makes your RUBBLE MASTER impact crusher into a highly efficient aggregate system. This electric screening plant utilizes the crusher surplus power and keeps operation and maintenance costs to a minimum.

Cost Effective

Lowest operating & owning cost compared to a full-size mobile screening plant.

Small footprint

Small Footprint

When real estate comes at a premium, every square inch counts.

Electric drives

Electrically Powered

Easy to retrofit with an existing RUBBLE MASTER crusher. Contact a RUBBLE MASTER expert to ensure enough power is available.

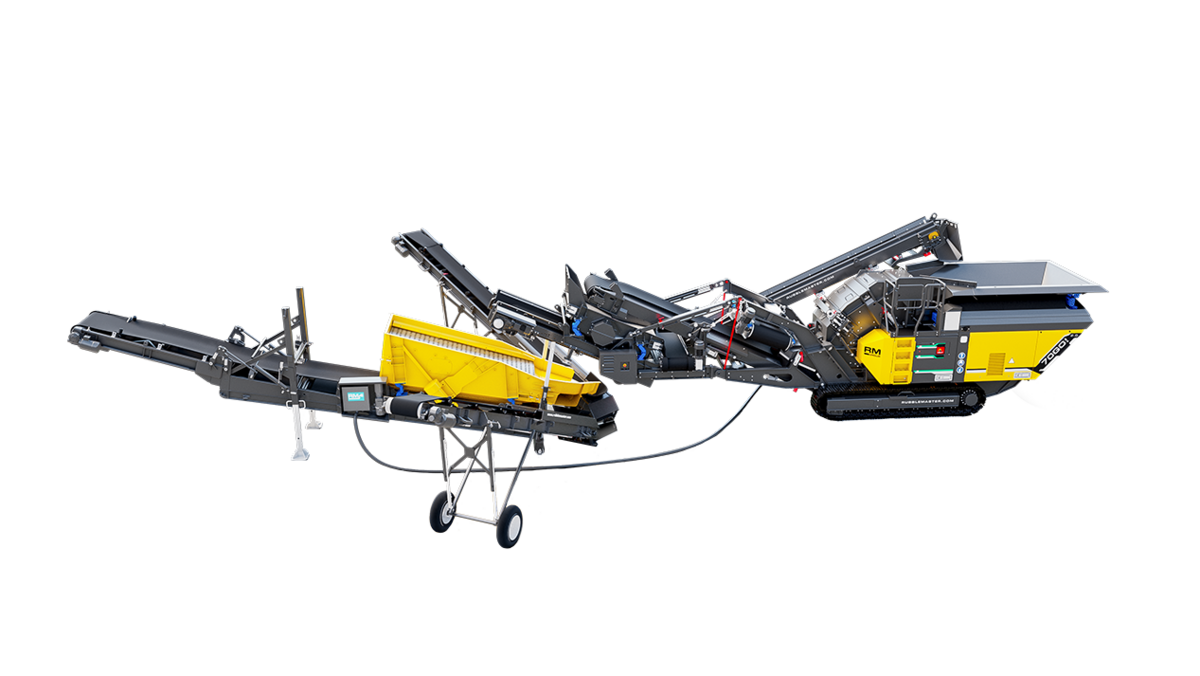

The RM CS3600 is powered by the crusher's surplus power

Applications

Crushing river gravel producing 3 products The RM 100GO! mobile impact crusher operates in a closed-circuit system and powers an additional RM CS4800 2-deck screening plant. In total, the system has three screen-decks.
Crushing river gravel producing 4 products The RM 100GO! mobile impact crusher swings out the oversize conveyor to stockpile an oversize product, while the compact screen produces three defined end products.

RM CS3600 Specs

Screen-box 1,200 x 3,000 mm 4 x 10 ft
Screen-decks 2 2
Screen angle 8° - 15° 8° - 15°
Drive Electric Electric
Engine powered by RM 70/90GO! powered by RM 70/90GO!
Weight (no options) 6,300 kg 14,000 lbs
Rubble Master - RM CS3600

RM CS4800 Specs

Screen-box 1,300 x 3,500 mm 4.5 x 13 ft
Screen-decks 2 2
Screen angle 8° - 10° 8° - 10°
Drive Electric Electric
Engine powered by RM 100GO! powered by RM 100GO!
Weight (no options) 8,000 kg 17,640 lbs
Rubble Master - CS4800

Talk to an Expert

Since 1991, RUBBLE MASTER has brought numerous innovations to the market. We’re crushing & screening experts and work closely with contractors and aggregate producers world-wide.
